SOUTH AUSTRALIA GM CLASS

Builder - Clyde Engineering (Granville)

Model

GM1-11 - ML1

GM12-47 (Originally) - A7

GM12-47 (Later) - A16C

Gauge - Standard, Broad

Wheels

GM1-11 - A1A-A1A

GM12-47 - Co-Co

Power

GM1-11 - 1120 kW /  1500 HP

GM12-47 -  1340 kW /  1800 HP

Length - 18.54m

Mass

GM1-11 - 109t

GM12-47 - 116t

Website: Brad Peadon

Listing: Bradly Coulter

                                                                        June 2023

--

Loco	Build #	Date	Owner	Staus	Livery	Location
GM1	ML1-1	9/22/1951	WA RTM	Stored	CR red	Bassendean
GM2	ML1-2	11/17/1951	National Rail Museum	Static	CR red	Port Dock

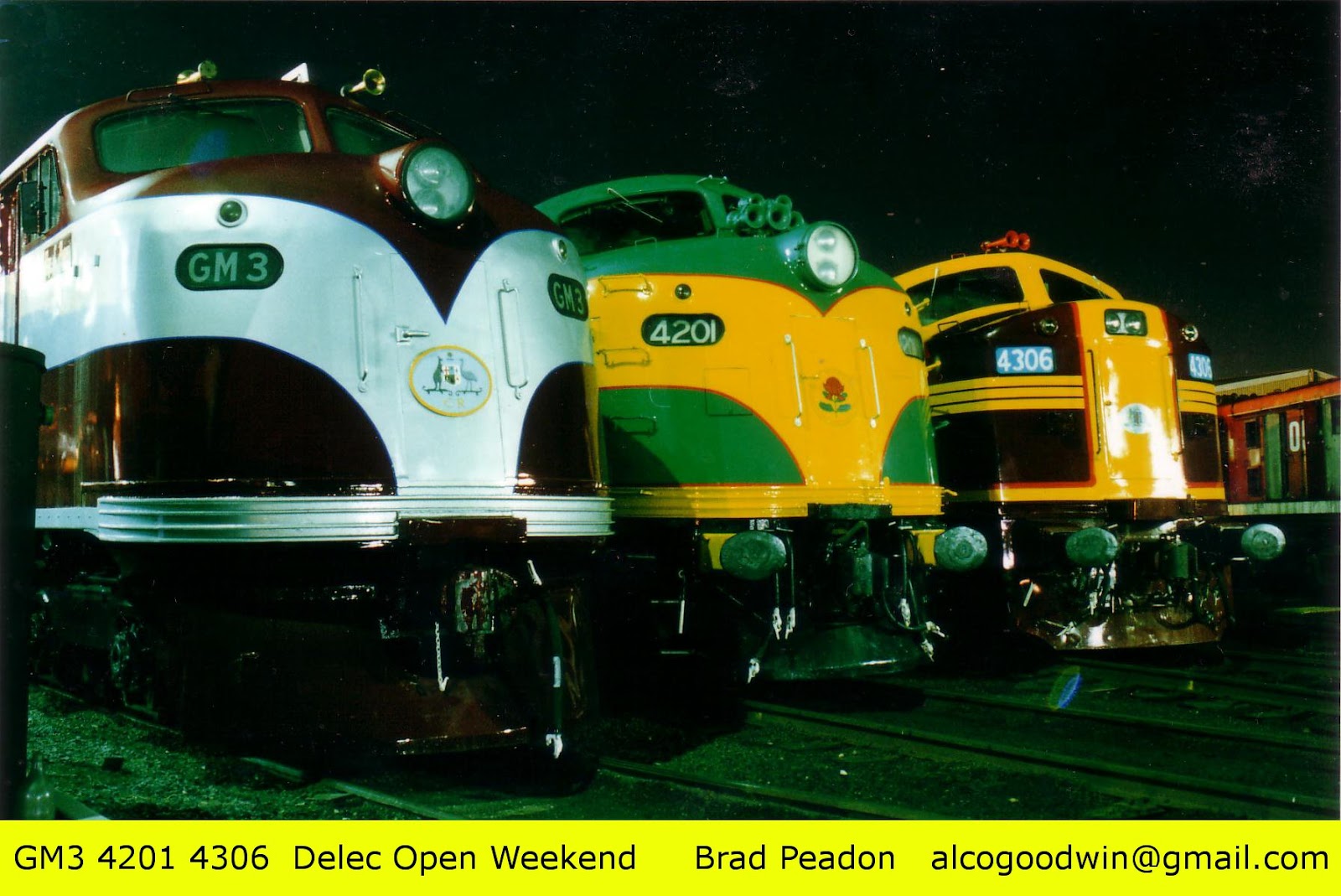

GM3	ML1-3	12/11/1951	Southern Shorthaul	Stored	CR red	Lithgow
GM4	ML1-4	1/3/1952	Australian National	Scrapped 1990	AN Green	N/A
GM5	ML1-5	1/26/1952	Australian National	Scrapped 1990	AN Green	N/A
GM6	ML1-6	2/20/1952	Australian National	Scrapped 1990	AN Green	N/A
GM7	ML1-7	3/8/1952	Australian National	scrapped 1991	AN Green	N/A
GM8	ML1-8	3/22/1952	Australian National	Scrapped 1990	AN Green	N/A
GM9	ML1-9	4/19/1952	Australian National	Scrapped 1990	AN Green	N/A

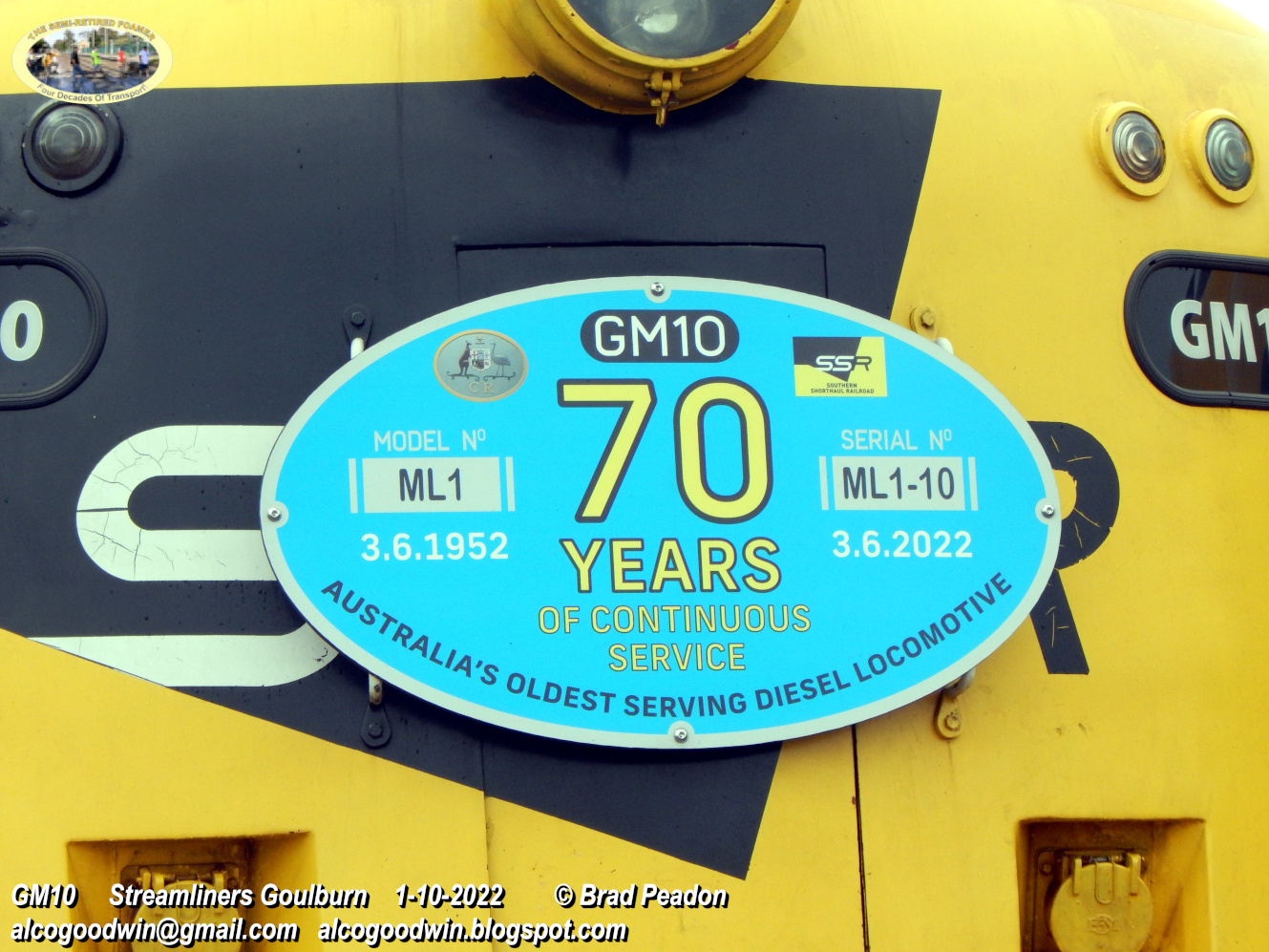

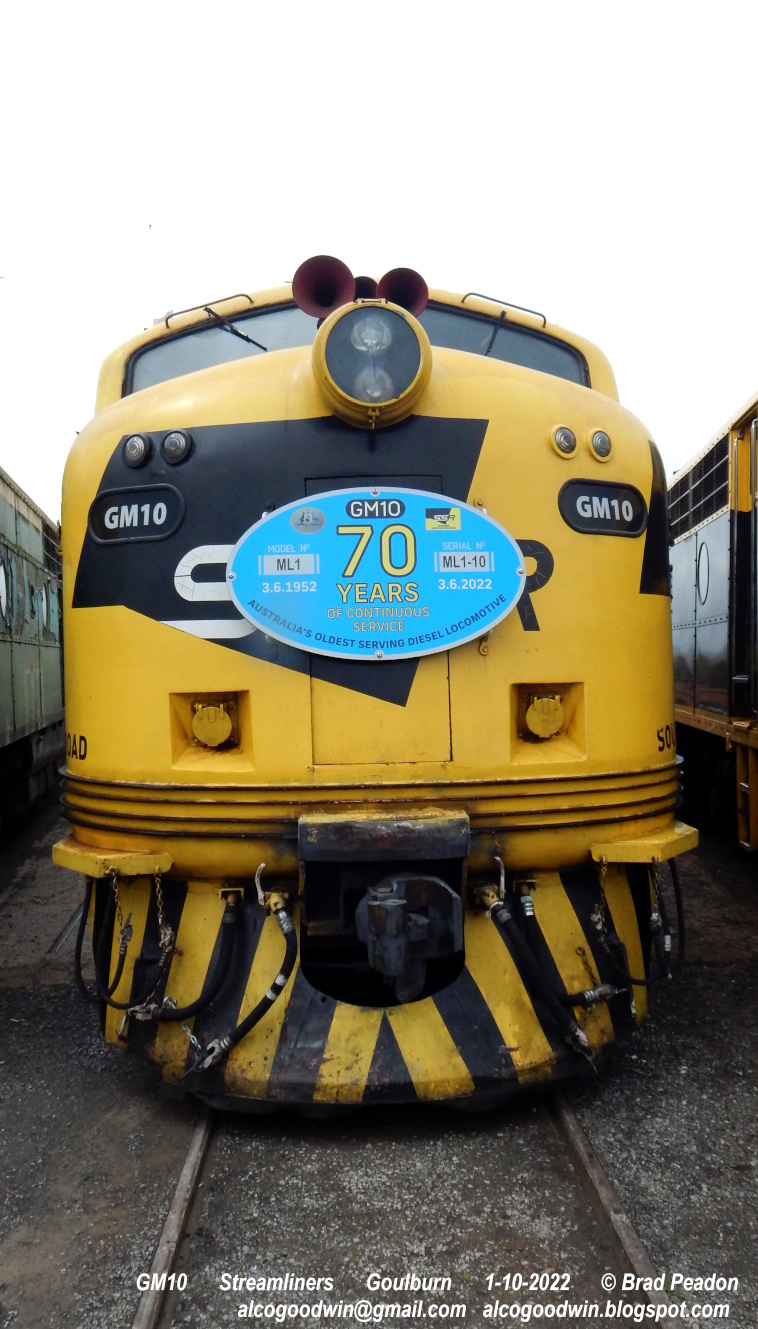

GM10	ML1-10	6/3/1952	Southern Shorthaul	Operational	SSR Yellow	Service
GM11	ML1-11	7/8/1952	Australian National	Scrapped 1990	AN Green	N/A
GM12	55-70	10/28/1955	Southern Shorthaul	Stored	AN Green	Bendigo
GM13	55-72	11/18/1955	Australian National	Scrapped 1991	AN Green	N/A
GM14	56-84	4/10/1956	Great Northern Rail	Scrapped	AN Green	N/A
GM15	56-88	4/26/1956	Australian National	Scrapped 1991	AN Green	N/A
GM16	56-97	7/13/1956	Australian National	Scrapped 1991	AN Green	N/A
GM17	57-137	3/1/1957	Australian National	Scrapped 1991	AN Green	N/A
GM18	57-139	4/4/1957	Great Northern Rail	Scrapped	AN Green	N/A
GM19	57-148	5/9/1957	Rail Power	Stored	AN Green	Goulburn
GM20	57-151	6/6/1957	Australian National	Scrapped 1991	AN Green	N/A
GM21	57-158	7/17/1957	Australian National	Scrapped 1991	AN Green	N/A

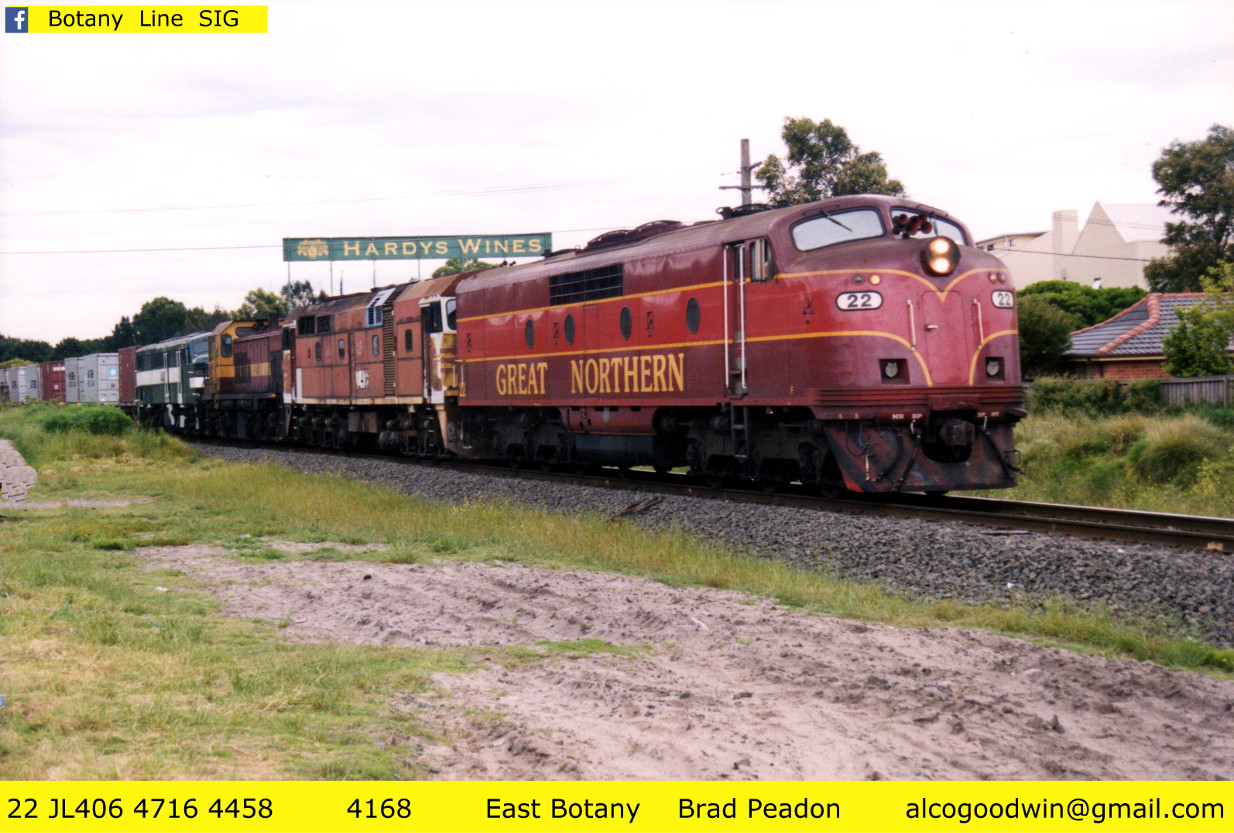

GM22	62-252	7/2/1962	Southern Shorthaul	Operational	SSR Yellow	Service
GM23	62-253	8/24/1962	Australian National	Scrapped 1991	AN Green	N/A
GM24	62-254	9/29/1962	Australian National	Scrapped 1990	AN Green	N/A
GM25	62-255	10/29/1962	Privately Owned	Scrapped	AN Green	N/A
GM26	62-256	11/27/1962	Great Northern Rail	Scrapped	AN Green	N/A

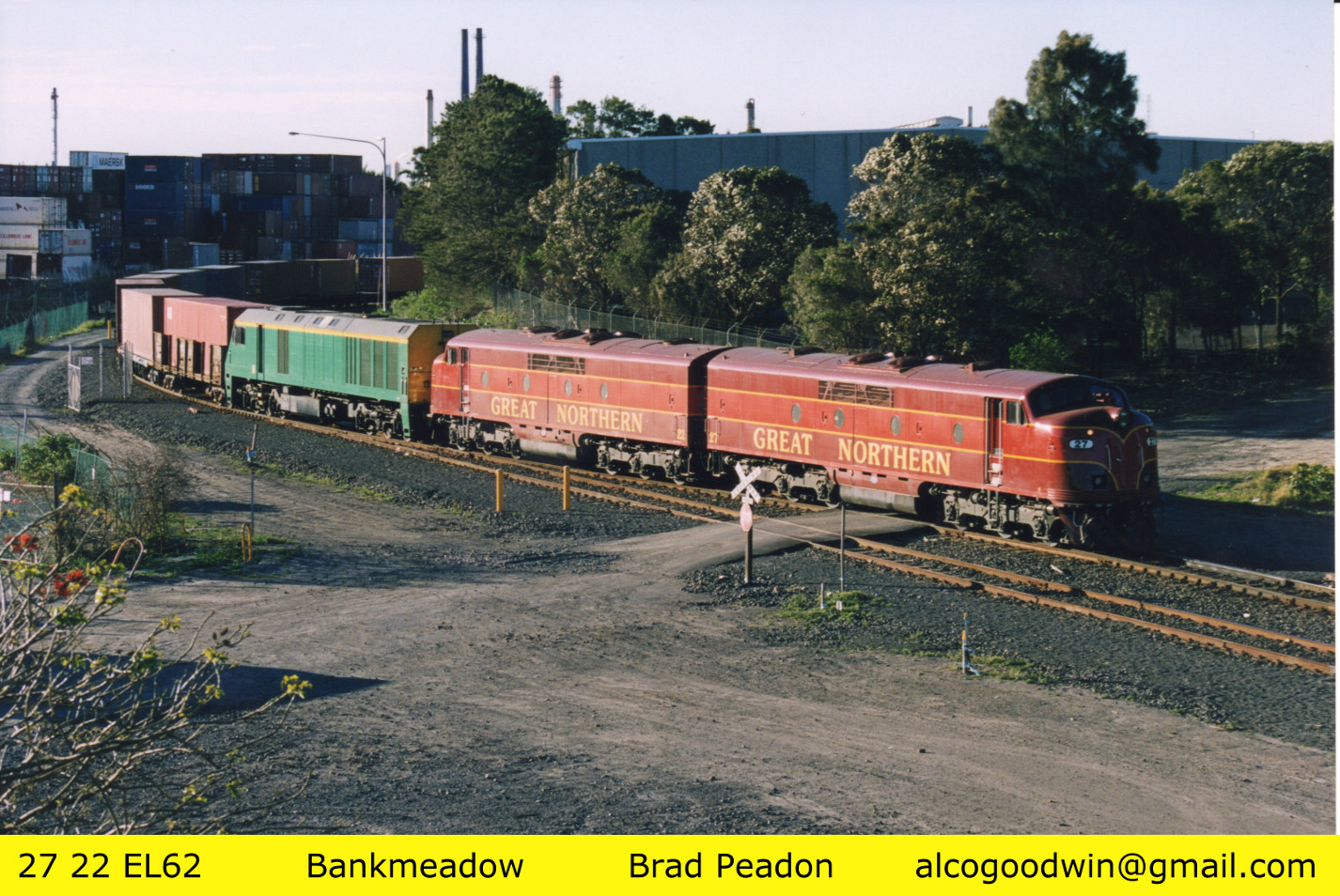

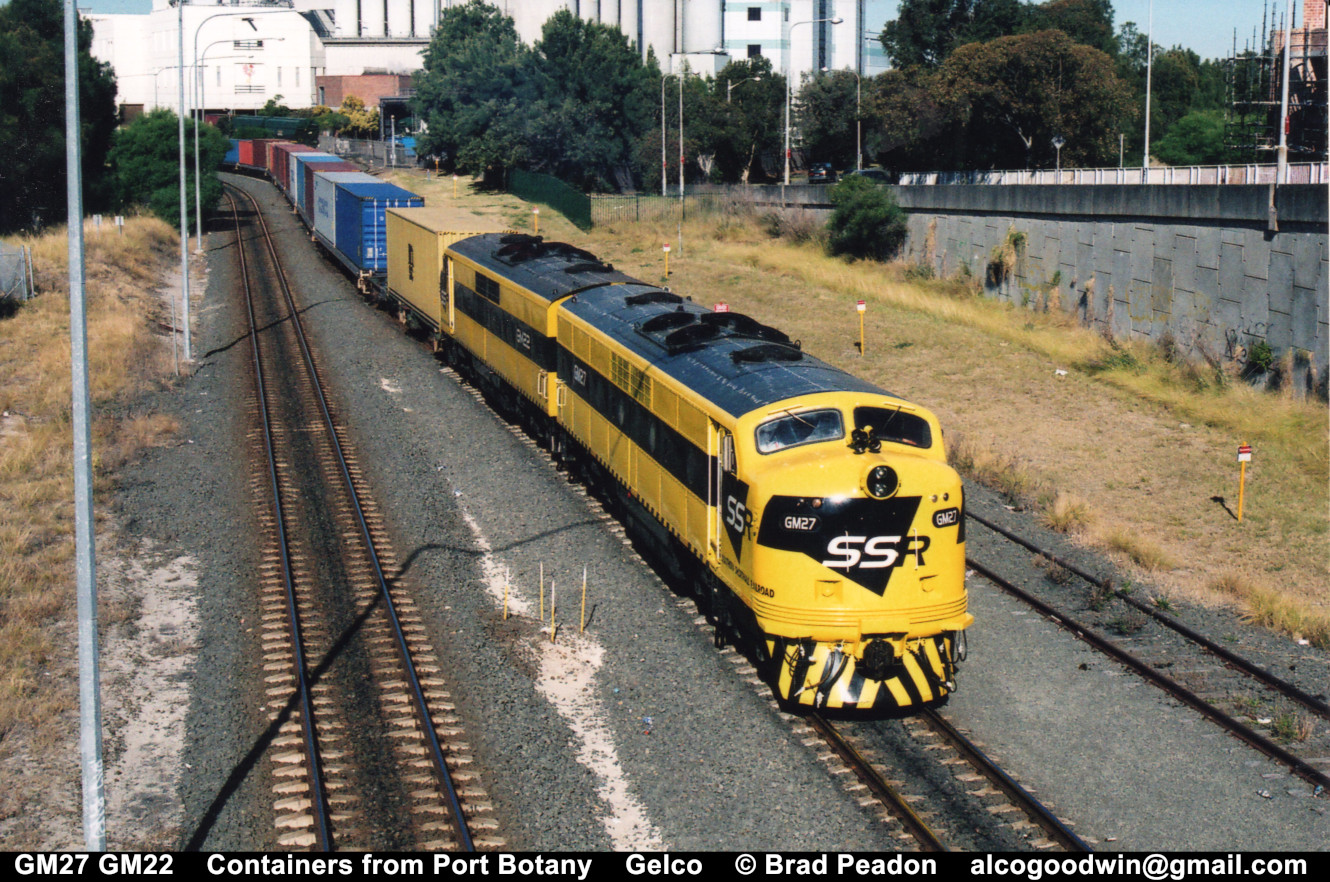

GM27	62-267	1/7/1963	Southern Shorthaul	Operational	SSR Black	Service
GM28	62-268	2/11/1963	Seymour Rail Heritage	Stored	CR red	Seymour
GM29	62-269	3/22/1963	Australian National	Scrapped 1987	AN Red	N/A
GM30	64-366	12/9/1964	Aurizon	Scrapped	Grey	N/A
GM31	64-367	1/8/1965	Australian National	Scrapped 1988	AN Green	N/A
GM32	64-368	1/27/1965	Genesee & Wyoming	Scrapped 2014	AN Green	N/A
GM33	64-369	3/10/1965	Great Northern Rail	Scrapped	AN Green	N/A

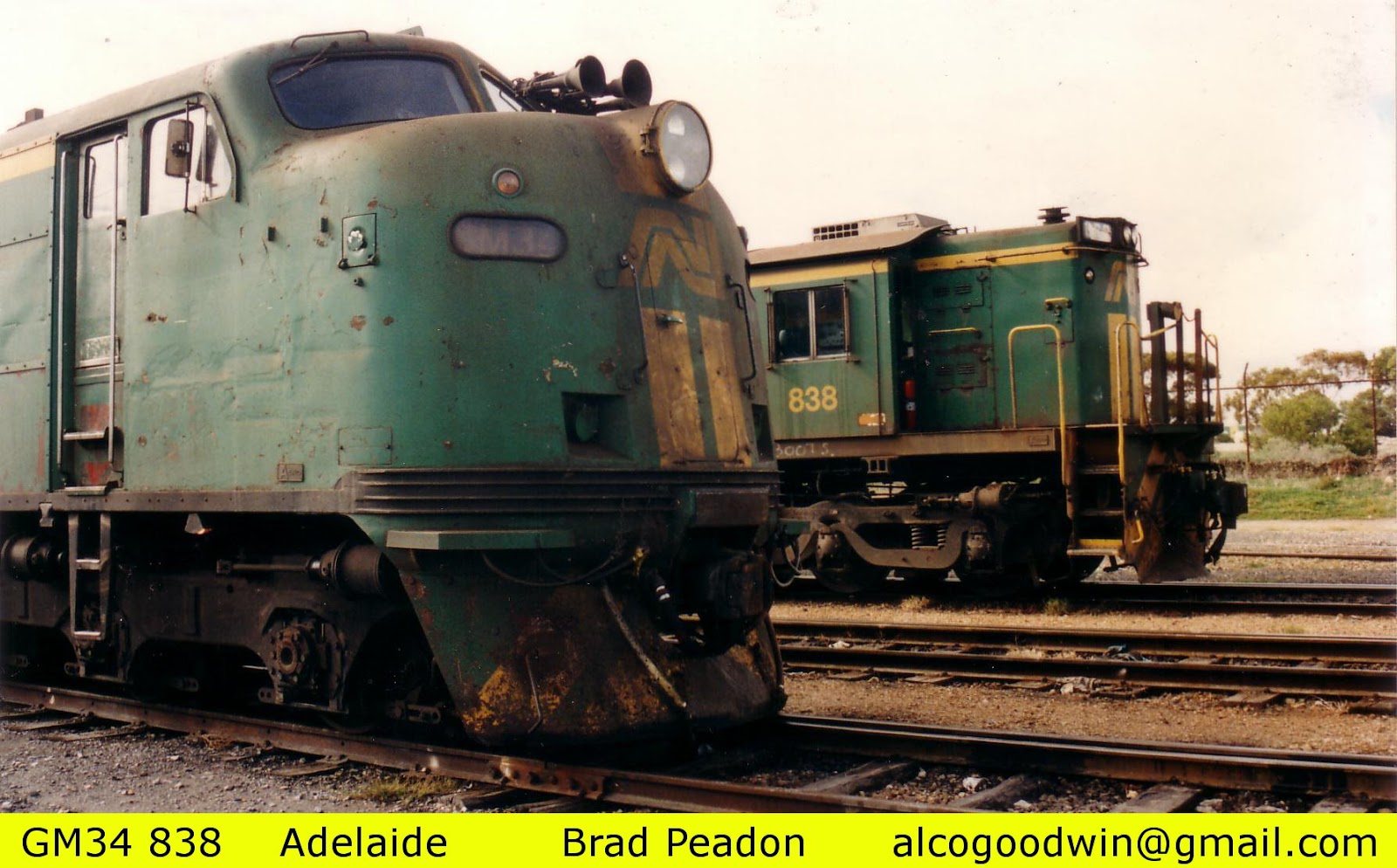

GM34	64-370	4/2/1965	Genesee & Wyoming	Scrapped 2014	AN Green	N/A
GM35	66-444	4/5/1966	Great Northern Rail	Scrapped	AN Green	N/A
GM36	66-445	5/11/1966	Seymour Rail Heritage	Restoration	CR red	Seymour
GM37	66-446	6/15/1966	Aurizon	Operational	GWA Orange	Dry Creek
GM38	66-447	6/22/1966	Aurizon	Stored	GWA Green	Dry Creek
GM39	66-448	7/5/1966	Australian National	Scrapped 1990	AN Green	N/A
GM40	66-526	1/25/1967	Aurizon	Stored	GWA Green	Dry Creek
GM41	67-527	2/9/1967	Great Northern Rail	Scrapped	AN Green	N/A
GM42	67-528	2/27/1967	Aurizon	Stored	GWA Orange	Dry Creek
GM43	67-529	3/23/1967	Aurizon	Operational	GWA Orange	Dry Creek

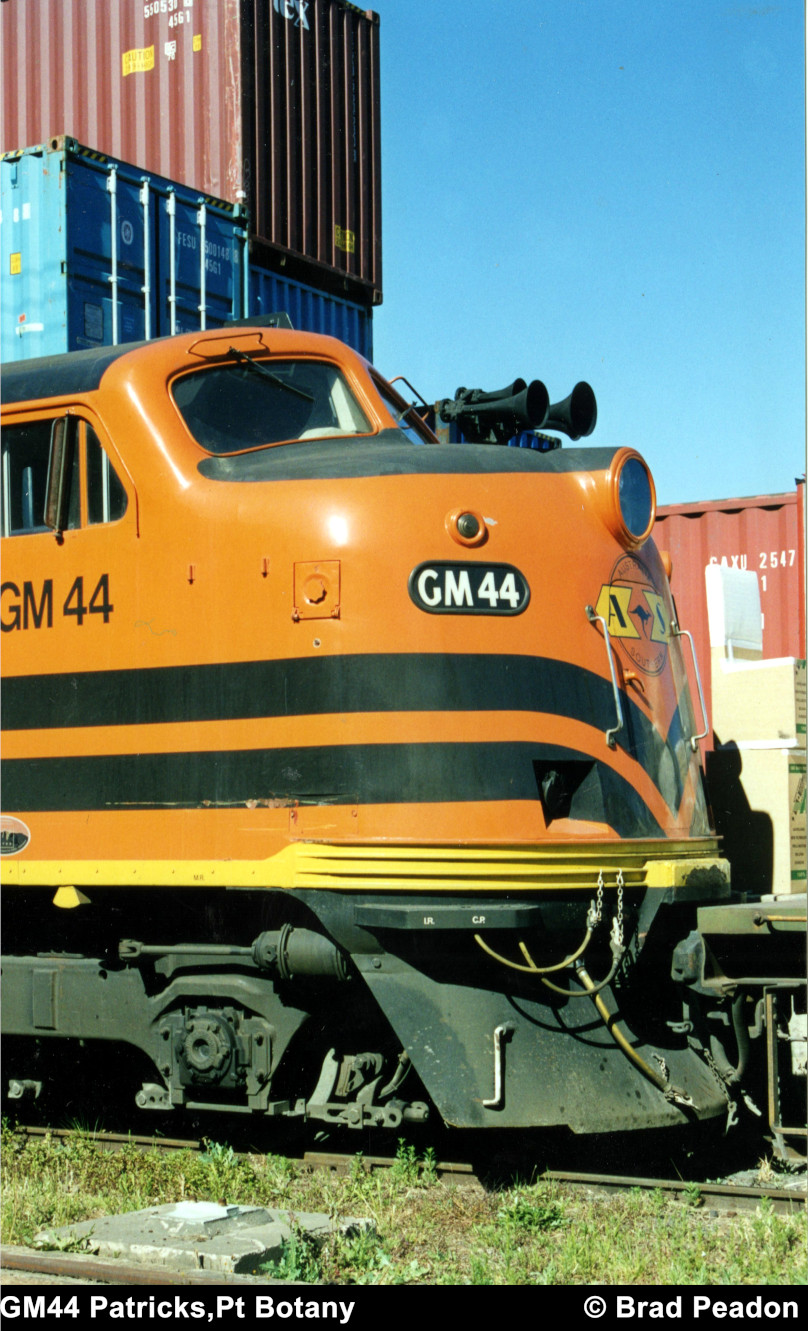

GM44	67-530	4/26/1967	Aurizon	Stored	GWA Orange	Pt Augusta
GM45	67-531	5/22/1967	Aurizon	Stored	GWA Orange	Dry Creek
GM46	67-532	7/5/1967	Aurizon	Operational	GWA Green	Dry Creek
GM47	67-533	1/16/1968	Aurizon	Operational	GWA Orange	Dry Creek

--

GM1

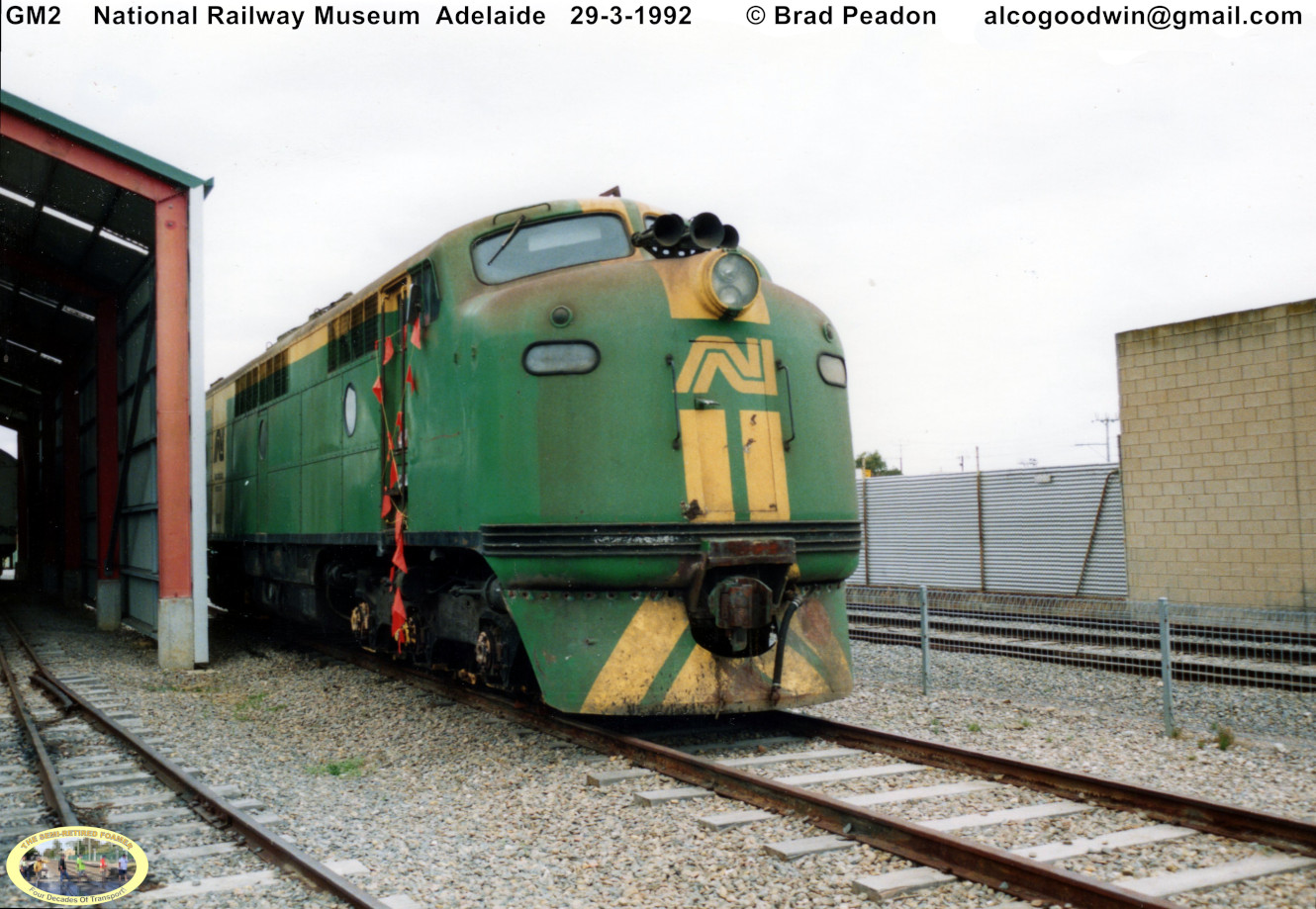

GM2

GM3

GM4

GM5

GM6

GM7

GM8

GM9

GM10

GM11

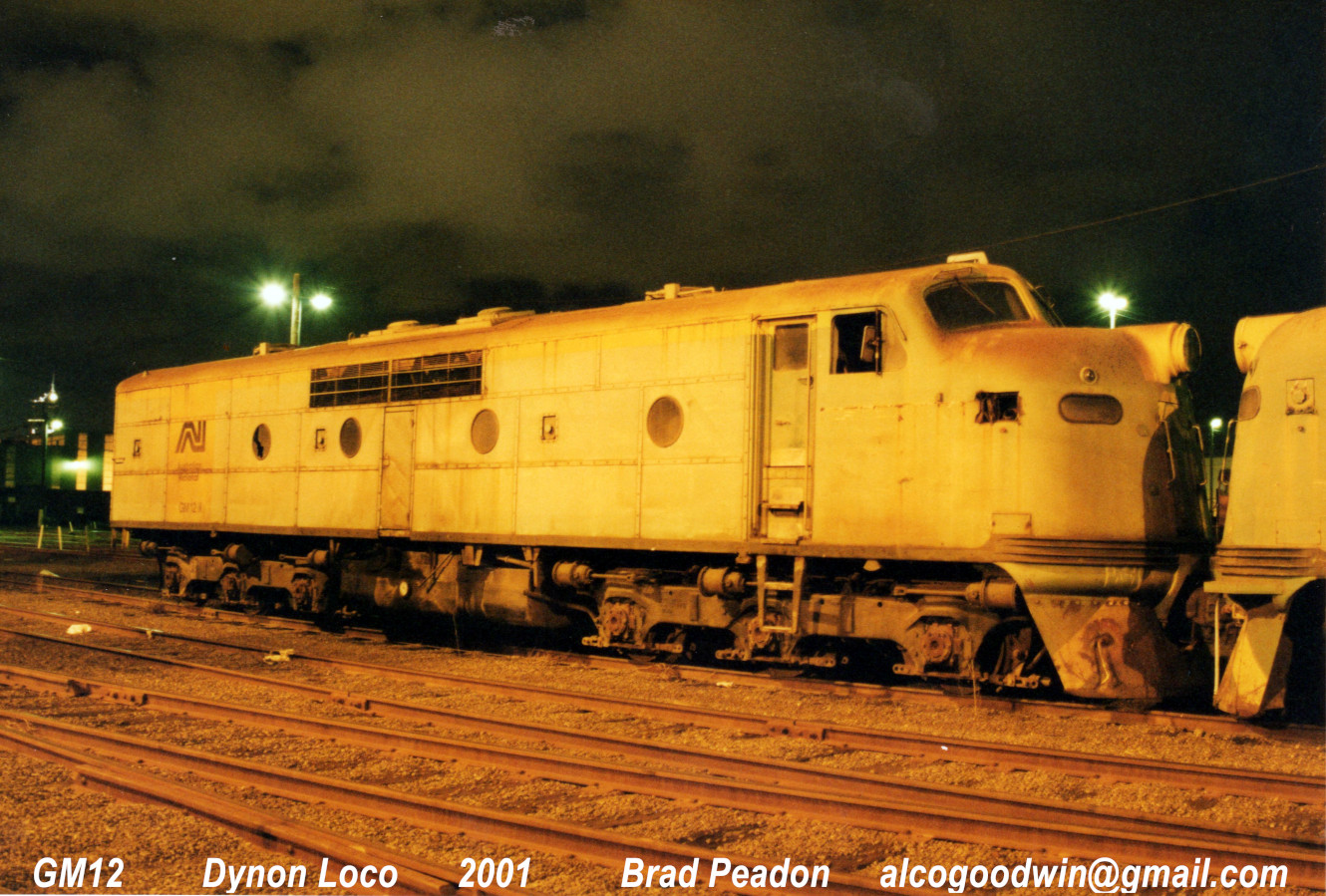

GM12

GM13

GM14

GM15

GM16

GM17

GM18

GM19

GM20

GM21

GM22

GM23

GM24

GM25

GM26

GM27

GM28

GM29

GM30

GM31

GM32

GM33

GM34

GM35

GM36

GM37

GM38

GM39

GM40

GM41

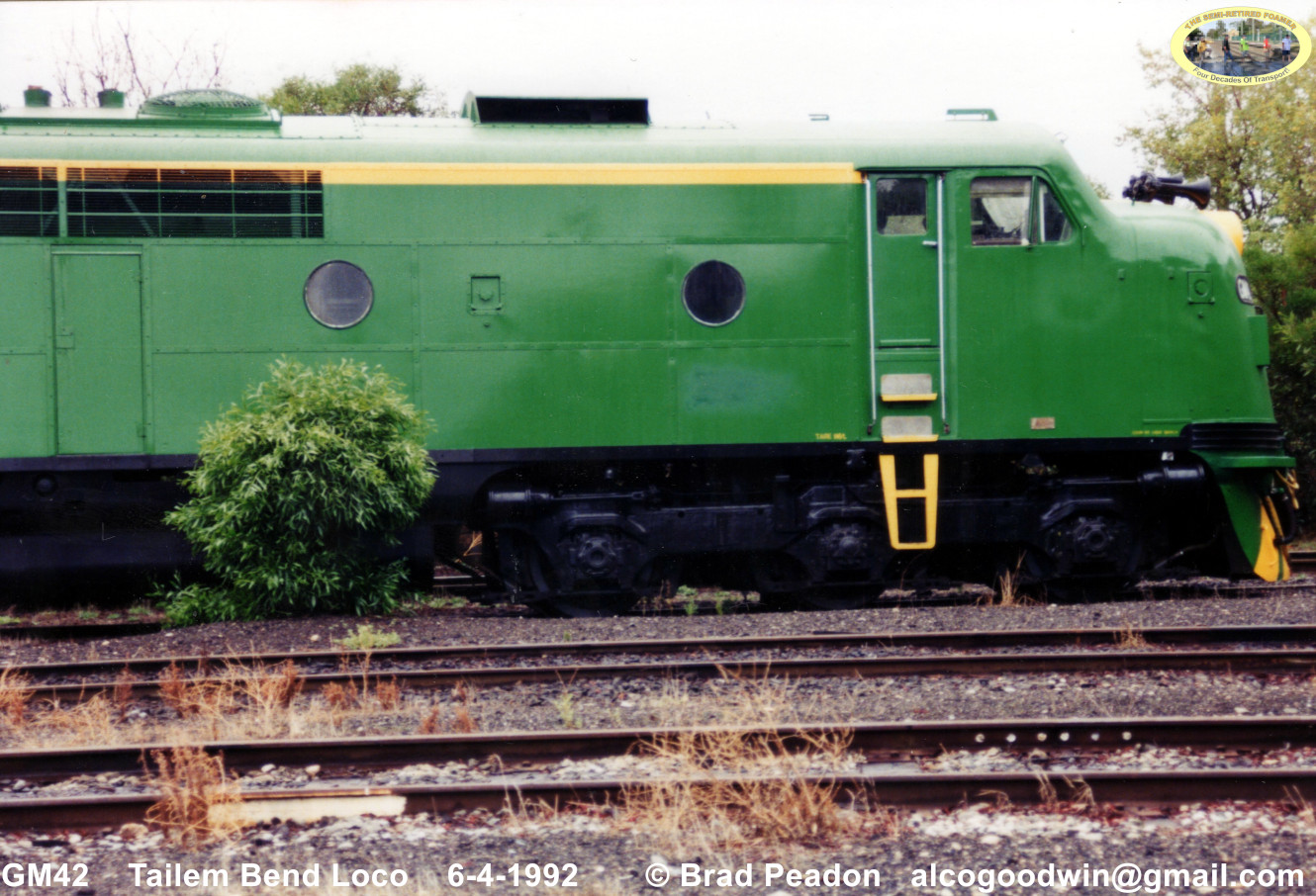

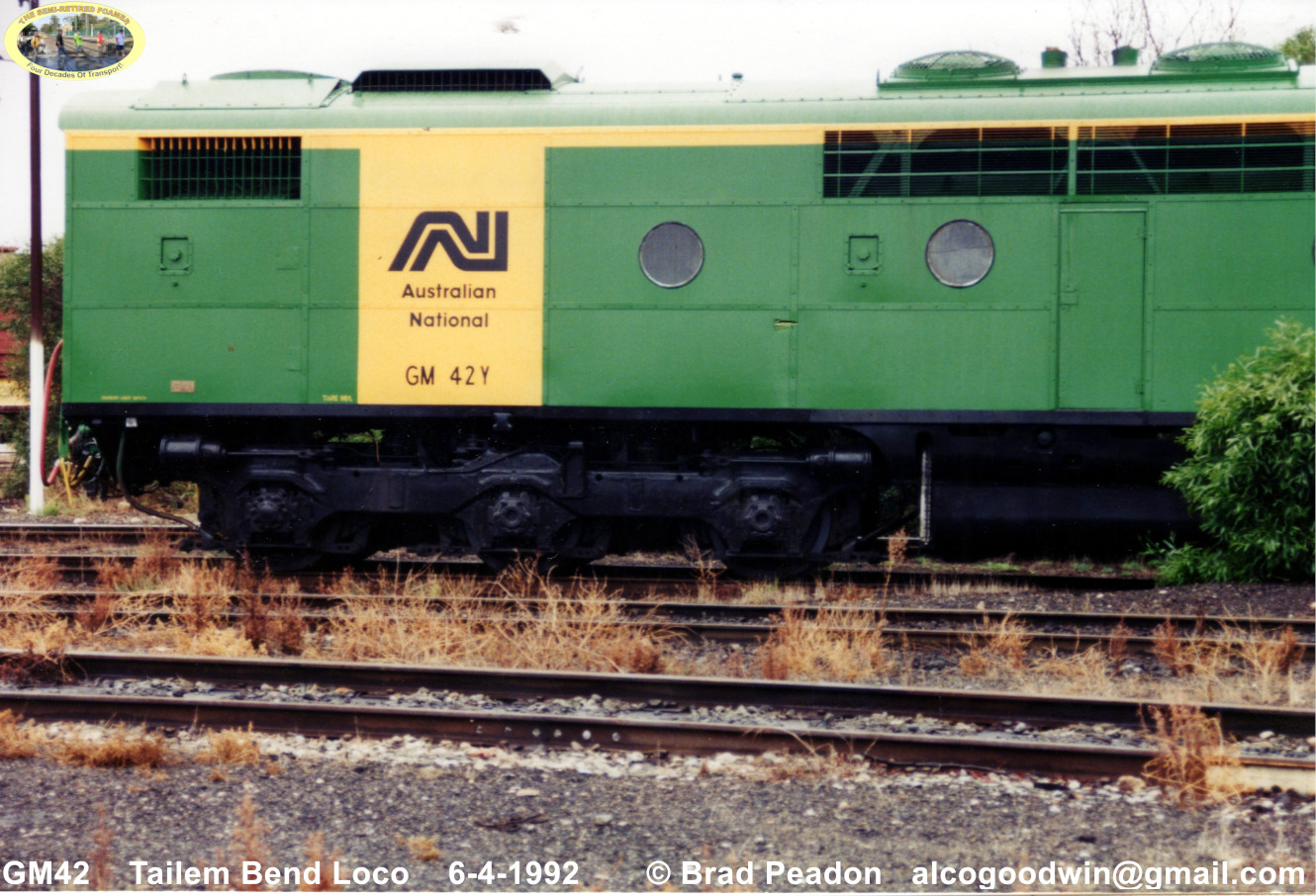

GM42

GM43

GM44

GM45

GM46

GM47

--------------------------------------------------
